ZERO

Cargo

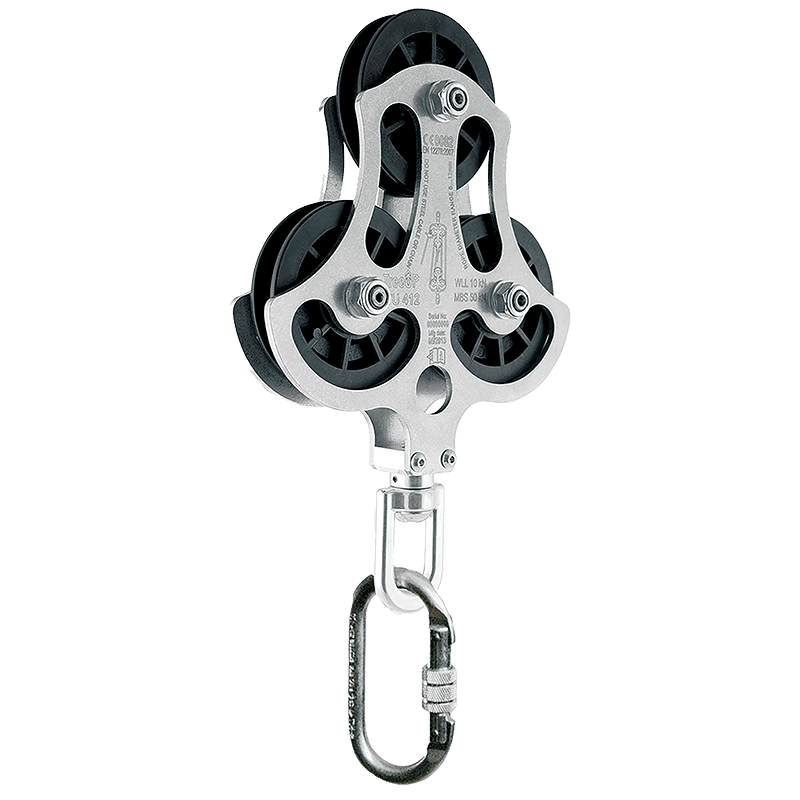

Multi pulley block kit - cargo only

SKU: ZCPB11

Overview

Designed for controlled lifting and lowering of loads. By correctly weaving the rope through the device, large loads of equipment or parts of a tree trunk can be safely lowered. A simple rope locking device is integrated.

Since the gear ratio is 4:1 the ropes ordered should have 4x the length that would normally be ordered for the given use.

Sizes

  • 30m
  • 50m
  • 80m

Rating

1000kg

Life Span

Up to 10 Years

Certifications

Personal protective equipment for the prevention of falls from a height - Low stretch kernmantle ropes

AS 4142.3-1993 Man-made fibre rope for static life rescue lines

Confined Space Pole Work

Product Detail

Model Size Weight (g) Dimensions Material
ZCPB11/300

30m

Up to 10 Years

30m

Polyester rope
ZCPB11/500

50m

Up to 10 Years

50m

Polyester rope
ZCPB11/800

80m

Up to 10 Years

80m

Polyester rope
Suitable for textile rope diameter 8-12mm.

Tactix 12mm rope included.

Max working load:10kN.

Breaking force:50kN Not suitable for lifting workers (this is not an item of PPE).
