ZERO

AluBeam

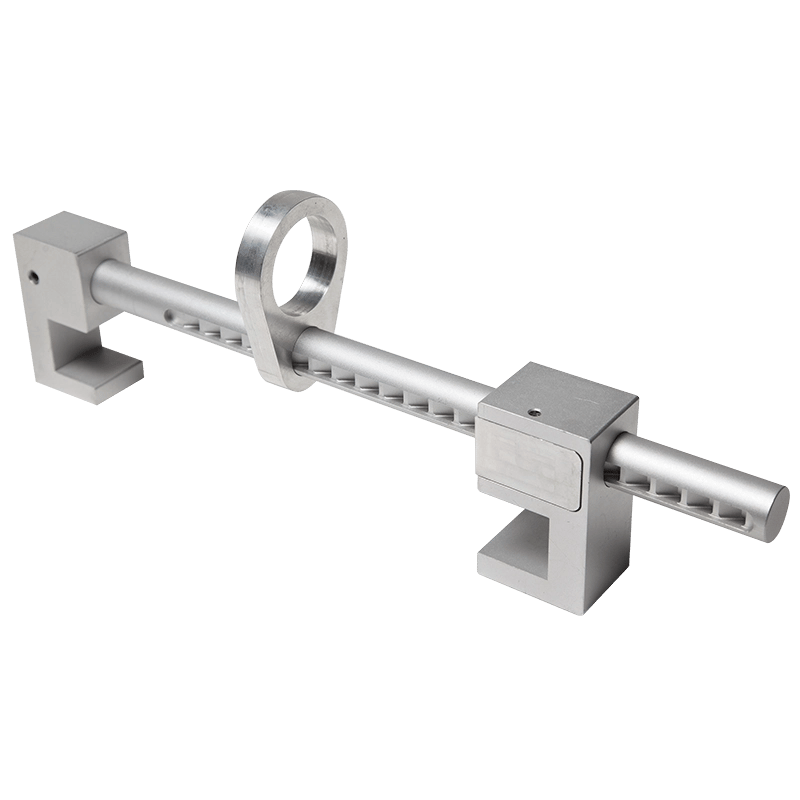

Rail Beam anchor clamp

SKU: AAB00XM

Overview

The ZERO® Alu Rail Beam Anchor is designed as a temporary portable anchor point that can be fixed to a horizontal steel beam with flanges 75mm to maximum 350mm wide. The steel beams must be mounted permanently to stable structure.

Sizes

  • *

Rating

15kN

Life Span

Up to 10 Years

Certifications

EN 795:2012 Class B, Personal fall protection equipment. Anchor devices
Fall Arrest Electrical Abseil Work Positioning Total Restraint Confined Space Rescue Construction
1 Person

Product Detail

Model Size Weight (g) Dimensions Material
AAB00XM

*

1370g

440 x 100 x 45mm

Aluminium
Rated for one person (15kN).

Quick connect mechanism.

Adjustable to fit beam flanges 75mm to 350mm wide.

Click lock action with locator points.

Steel & Aluminium construction

Weight: 1.37kg.

Can thread onto flanges up to 400mm.
